What you need to be FMVSS 111 compliant

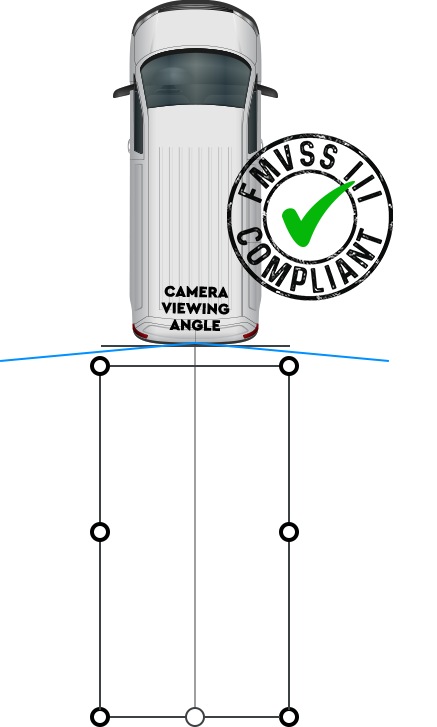

All new vehicles with a gross weight (GVWR) of 10,000 pounds or less, will have to have a rear view camera on it, including those with aftermarket or upfitter modification. The field of view extended area is a 10 foot by 20 foot space directly behind the vehicle. Though validation of the standard is done by the manufacturer, dealer, or upfitter; we are glad to assist our customers with camera choice and placement. Don't hesitate to reach out our compliance department in regards to the standard.
The camera to make your vehicle compliant

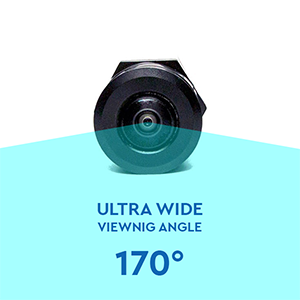

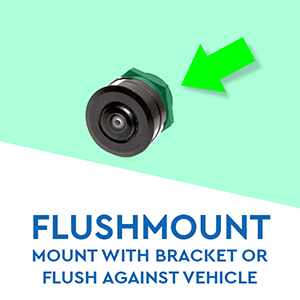

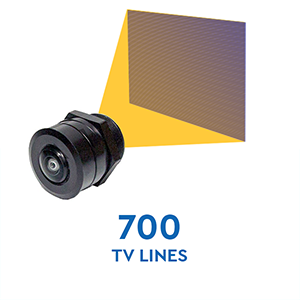

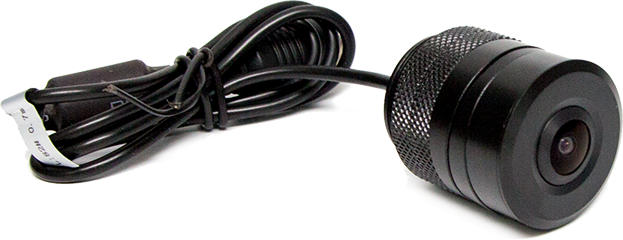

RVS-659
Camera must be installed between 5”-96” off the ground
Other Camera Options
When mounted correctly, these cameras will also make your vehicle compliant
-
RVS-777
150° BACKUP CAMERA WITH
9 INFRA-RED ILLUMINATORS -
RVS-2311
150° BACKUP CAMERA WITH
8 INFRA-RED ILLUMINATORS -
RVS-MV3-IR
SURFACE MOUNT BACKUP CAMERA
WITH INFRA-RED ILLUMINATORS
Camera Mounting Requirements
The following cameras will make your vehicle compliant when mounted according to the instructions in this chart:
Camera | Minimum Height | Off Center Leeway at Min Height | Max (Tested) Height | Off Center Leeway at Max Height |
---|---|---|---|---|
RVS-659 | 5 inches | 3 inches (12 at mid height) | 96 inches | 1 inch |
RVS-770 | 67 inches | 1 inch | 144 inches | 14 inches |
RVS-777 | 51 inches | 2 inches | 168 inches | 30 inches |
RVS-2311 | 58 inches | 8 inches | 168 inches | 30 inches |
RVS-MV3-IR | 36 inches | 3 inches | 168 inches | 30 inches |
RVS-MV1 | 44 inches | 1 inches | 120 inches | 16 inches |
RVS-Tailgate | 36 inches | 5 inches | 168 inches | 30 inches |
RVS-776 | 44 inches | 4 inches | 168 inches | 30 inches |
RVS-917 | 72 inches | 1 inch | 168 inches | 24 inches |
RVS-921 | 38 inches | 1 inch | 168 inches | 30 inches |
