RVS-123-5M
Radar Object Detection System For Light Duty Commercial Vehicles
Vehicle Safety. The way YOU want it.
RVS-123-5M
Radar Object Detection System For Light Duty Commercial Vehicles
-
Product Highlights
- Industrial grade; perfect for paving, construction, and mining work sites
- Detects objects and people behind vehicles up to 16ft
- IP69K waterproof/dustproof rating, and 15G vibration rating
- Durable polycarbonate housing and compact design
- Able to avoid false detections in busy work sites
-
Product Details
Your work vehicles are as tough as they come, and our powerfully compact Radar Object Detection System is just as rugged.
Built to outperform similar systems in its class, the polycarbonate housing, small footprint, IP69K waterproof/dustproof rating, and 15G vibration rating ensure that the RVS-123-5M functions in harsh industrial & weather conditions.
-
Product Highlights
- Industrial grade; perfect for paving, construction, and mining work sites
- Detects objects and people behind vehicles up to 16ft
- IP69K waterproof/dustproof rating, and 15G vibration rating
- Durable polycarbonate housing and compact design
- Able to avoid false detections in busy work sites
-
Product Details
Your work vehicles are as tough as they come, and our powerfully compact Radar Object Detection System is just as rugged.
Built to outperform similar systems in its class, the polycarbonate housing, small footprint, IP69K waterproof/dustproof rating, and 15G vibration rating ensure that the RVS-123-5M functions in harsh industrial & weather conditions.
FMCW (frequency-modulated continuous wave) technology detects and visually/audibly alerts operators of stationary objects and people in blind spots up to 16ft away.
The system's ability to determine whether an object is approaching or moving away from the sensor helps limit false detections caused by objects that are of little threat in busy work sites.
Detection Zone Mode 1 (3.0 X 5.0 M), Mode 2 (2.5 x 4.0 M), Mode 3 (2.0 x 3.0 M)
- Product Dimensions
Radar Sensor: 4.3" (H) x 4.2" (L) x 1.3" (D)Radar Display: 0.07" (H) x 1.9" (L) x 2.5" (D)
- Spec Sheet & Manual
- 1 Year
Warranty - Same Day
Shipping - Buy & Try
30 Day Guarantee - Lifetime
Tech Support - Satisfaction
is 100% Guaranteed - Private and
100% Secure - TS 16946:2009 &
ISO 9001:2008 Certified - 26 Point
Quality Assurance
-
-
-
All components in our wired systems can be mixed and matched. Any camera can go with any monitor and vice versa for no extra cost. Call our vehicle specialists at (800) 764-1028 to place a custom order!
Radar Sensor
The RVS-123-5M uses radar technology to detect stationary objects and people in blind spots. The system features both visual and aural warnings.

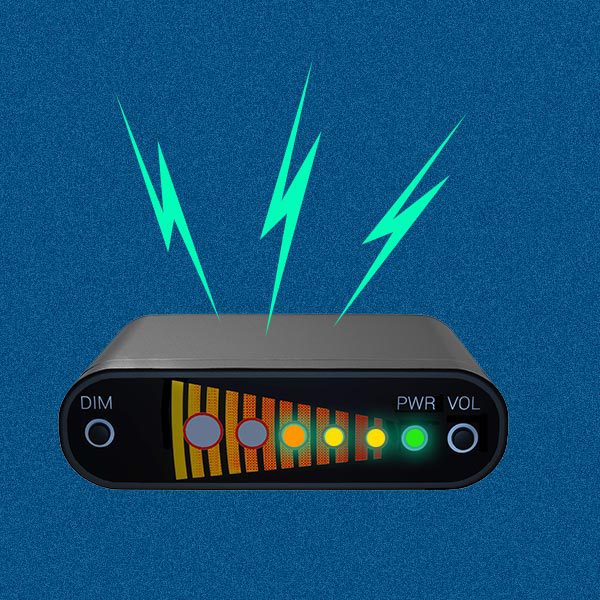

Detection Modes
The ability to change the length/width of the detection zones makes this system ideal for light-duty vehicles of many shapes and sizes.

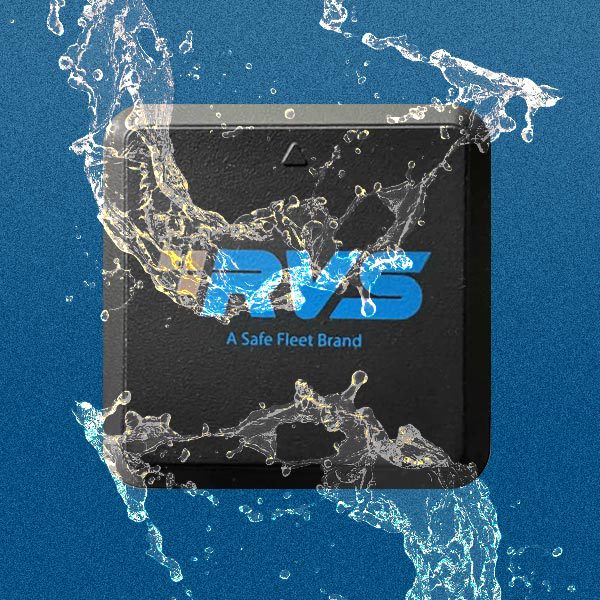

Industrial Grade
With an IP69K waterproof/dustproof rating and a durable polycarbonate build, this sensor was designed to withstand the wear and tear of construction, mining, and paving work sites.
- 1 x Radar Sensor
- 1 x Radar Sensor Display Unit
- 1 x Radar Sensor Wall Mount
- 1 x Radar Sensor Display Unit Mount
- 1 x Power Cable
- 2 x Screw Kits For Installation
Radar Sensor Specs- Transmit Frequency (GHz)24.05~24.25 GHz
- ModulationFMCW (Frequency Modulated Continuous Wave)
- Max Detection Range16ft
- Current Consumption93mA @ 12V
- Power On Time300 ms
- Detection Time200 ms
- CommunicationCAN-Bus
- Operating Temperature-40°C ~ +85°C
- Waterproof RatingIP69K
- Vibration Rating15
- Housing MaterialPolycarbonate
- Overall Dimensions1.7" (W) x 1.7" (L) x 1.3" (H)
- Weight175 w/o Bracket / 240g With Bracket
Radar Display Unit Specs- Detection ZoneMode 1 ~ 2 (5 zones) & Mode 3 (3 zones)
- Speaker3 x different volume levels to be selected
- Operating Temp-30°C ~ +70°C
- Housing MaterialPolycarbonate
- Cable Length0.7M
- Connector4P Screw Lock type
- Dimensions20(W) x 65(L) x 54(H) mm
- Weight200g w/o Bracket / 220g With Bracket
